LIGHT WEIGHT, LARGE PAYLOAD & MAXIMUM VALUE

7.6 to 8T TARE

45 to 50m³

HARDOX STEEL

E-LITE GRAIN TIPPER

The E-LITE GRAIN end tipper is built for farmers, contractors and transport operators who need serious grain capacity without the premium price tag.

Constructed using high-tensile T700 and Hardox steel, the E-LITE GRAIN delivers the strength required for demanding agricultural work while maintaining a competitive tare weight of approximately 7.6 to 8 tonnes, depending on configuration.

Available in multiple sizes, the E-LITE GRAIN can be configured for everything from a single trailer through to multi-trailer grain combinations.

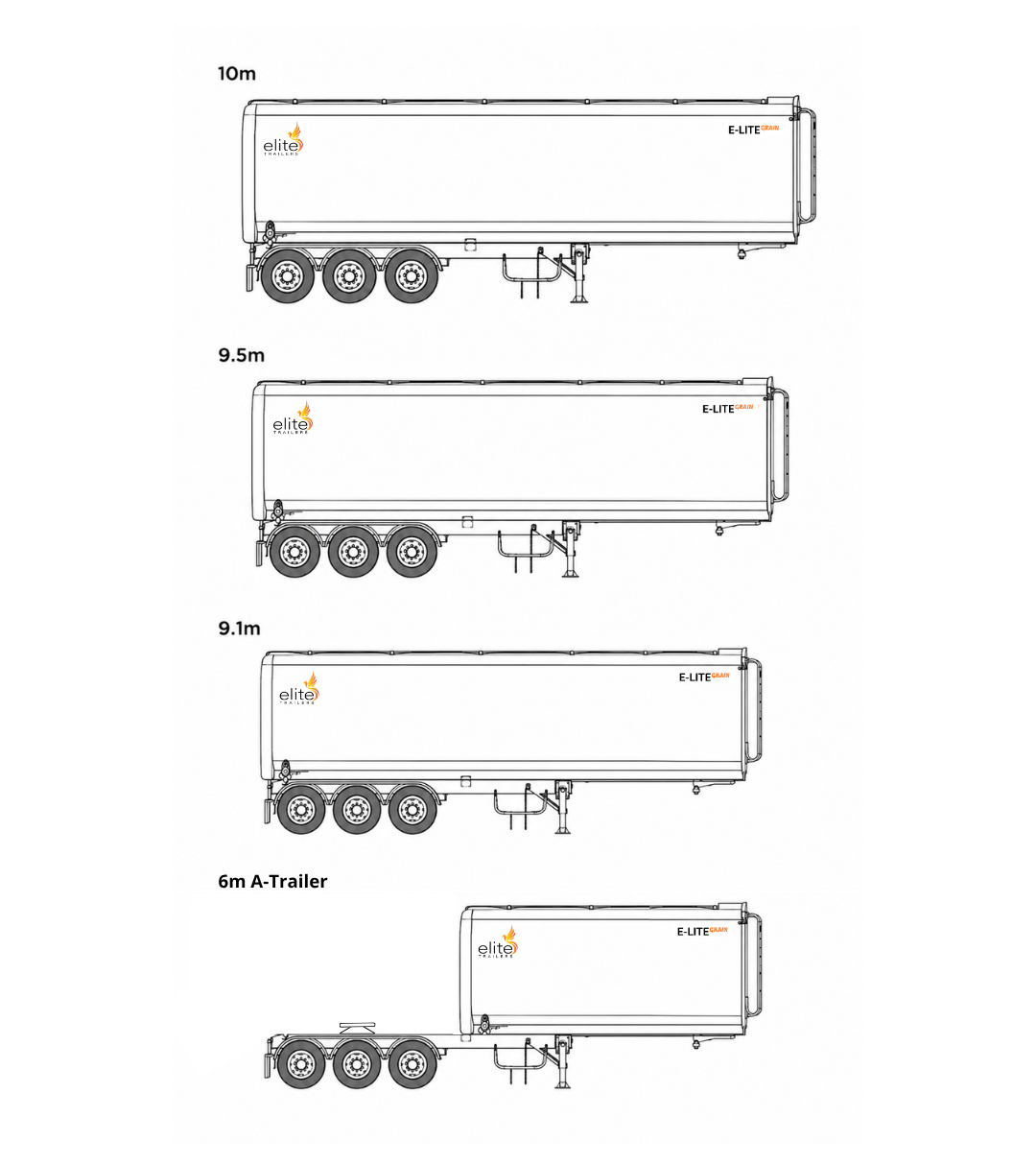

Available Configurations

9.1m Trailer - $90,995 +GST
7.6T Tare and 45m³ capacity

9.5m Trailer - $92,995 +GST
7.8T Tare and 47m³ capacity

10m Trailer - $94,995 +GST
8T Tare and 50m³ capacity

6m A-Trailer - $94,995 +GST
TBC Tare and 30m³ capacity

More Trailer for Your Money

Premium grain trailers can represent a significant investment, particularly when purchasing an entire combination.

The E-LITE GRAIN gives operators another option — a strong, lightweight and high-capacity grain tipper at a price designed to make commercial sense.

For businesses purchasing multiple trailers, that difference can mean a substantial reduction in the overall cost of establishing or upgrading a grain haulage combination.

From $90,995 +GST
Text in bold red capital letters that reads "FUWA K HITCH" against a white background.
Red background with a white geometric logo resembling a stylized letter H or a combination of shapes.
ZF and WABCO logos in blue
The image displays the word 'JOST' in bold blue capital letters with an orange underline.
KNORR-BREMSE logo featuring a blue circle with a white 'K' inside, followed by the company name in bold blue text.
Logo for HARDOX WEPARTS in bold maroon letters on a white background

Specifications & Questions

Still have questions? Please reach out to us on 1300 001 855

Contact us

  • Elite Trailers Tri Axle Sand Tipper “E-LITE GRAIN” SERIES

    Price:

    • 9.1m Trailer End Tipper $90,995 +GST

    • 9.5m Trailer End Tipper $92,995 +GST

    • 10m Trailer End Tipper $95,995 +GST

    • 6m A Trailer Sliding Tipper $94,995 +GST

    Capacity

    • 9.1m Trailer : Approx 7.6T tare & 45m³ capacity

    • 9.5 Trailer: Approx 7.8T tare & 47m³ capacity

    • 10m Trailer: Approx 8T tare & 50m³ capacity

    • 6.5m Trailer: Approx TBC & 30m³ capacity

    Dimensions

    • Overall height: 3800mm

    • Overall length: varies by model

    • Tipper Box height: 2100mm

    • Wheelbase: 1360mm + 1360mm

    Chassis

    • Main beam: VHT Steel T700 (700MPa Tensile/Yield), 10mm thickness

    • Body: Floor - Hardox 450 Abrasion Resistant Steel 4mm, Side - VHT T700 3mm.

    • King pin: Bolted JOST 3.5inch (90mm)

    • Tarp: Roll over manual tarp (electric optional extra)

    Running Gear

    • Axle: Fuwa K-Hitch 11.5tons (3 units)

    • Tyre: Triangle 11R22.5 double mounted

    • Rim: Polished Aluminum 8.25-22.5

    • Landing gear: JOST

    • Suspension: Fuwa K-HITCH Mechanical

    • Hydraulic cylinder: 70T

    • Brake system: Knorr-Bremse Emergency Relay Valve, dual line

    • EBS: Yes- Knorr-Bremse

    Accessories

    • Toolbox: yes

    • Spare wheel: 1 spare aluminum rim in carrier

    • Protectors: mudguard, mud-flags behind rear axle, mid & rear side protection

    • Sandblasted: Yes

    • Paint: Std Red chassis and White tipper box

  • All optional extras available at additional cost from displayed base unit price.

    All prices displayed below are GST exclusive.

    • King Pin Size change: 50mm (no extra cost)

    • Paint: Body & Chassis available in numerous colours, please enquire.

    • Ring Feeder: $2000

    • Suspension upgrade: Airbags $8000

    • Brakes upgrade: Disc brakes $5000

    • Electric Razor Tarp: $8000 fitted here locally

    • Weight Right Scales: Mechanical $1200

    • Weight Right Scales: Digital $2500

    • Hub Odometer: $250

    • Hardox Body Sides Upgrade: $10,000

  • Elite Trailers range of trailers allow operators to select the required equipment to suit their needs and ensure they remain road legal.

    Common combinations (WA specific) include:

    Category 2 RAVs (Pocket Road Train)

    • Max length 27.5m

    • A-DOUBLE COMBO: 2 × 10m Grain Trailers, 1 x Tri Axle Dolly. 100m³ capacity. Only $227,985 +GST

    Category 3 RAVs

    • Max length 36.5m

    • B-TRIPLE COMBO: 2 x A Trailers, 1 × 10m Grain Trailer, 110m³ capacity. $284,985 +GST

    • BA-TRIPLE (C Train) COMBO: 1 x A Trailer, 2 × 10m Trailers, 1 x Tri Axle Dolly. 130m³ capacity. $322,995+GST

    Category 5 RAVs

    • Max length 53.5m

    • A TRIPLE COMBO: 3 × 10m Trailer, 2 x Tri Axle Dolly, 150m³ capacity. $354,975 +GST

  • Where is Elite Trailers based?

    The team at Elite Trailers are based in Perth, Western Australia. Our yard for delivery and inspection is based at 25 Lionel Street, Naval Base.

    Elite Trailers is proudly Australian owned.

    How can Elite Trailers offer such affordable pricing?

    Elite Trailers uses an unique business model designed to keep our overheads low, enabling us to pass on the lower prices.
    All our design and engineering work is conducted in Australia, our overseas manufacturing partner builds each trailer to exact specifications using state of the art equipment at their disposal. On arrival in Australia, each trailer is inspected for QA and assembled before delivery.

    To further keep our overheads low, we do not keep much stock on hand with the majority of items in the depot pre-sold.

    What is the average build time?

    Build from date of deposit is approximately 10-12 weeks.

    Tell me more about Elite Trailers 24 month warranty?

    Elite Trailers offers an industry leading 24 month structural warranty and 12 month warranty on the running gear.

    More information can be found here.

    Can I get a customised trailer design?

    Yes, but it will depend on our engineering team and factories capacity and ability to fulfil the request.

    Can a trailer be picked up before paying the balance on the invoice?

    No. Trailers will not be released from our holding yard till remaining balance is paid.
