LIGHT WEIGHT TARE, MAX load

6.8T TARE

30T PAYLOAD

HARDOX STEEL

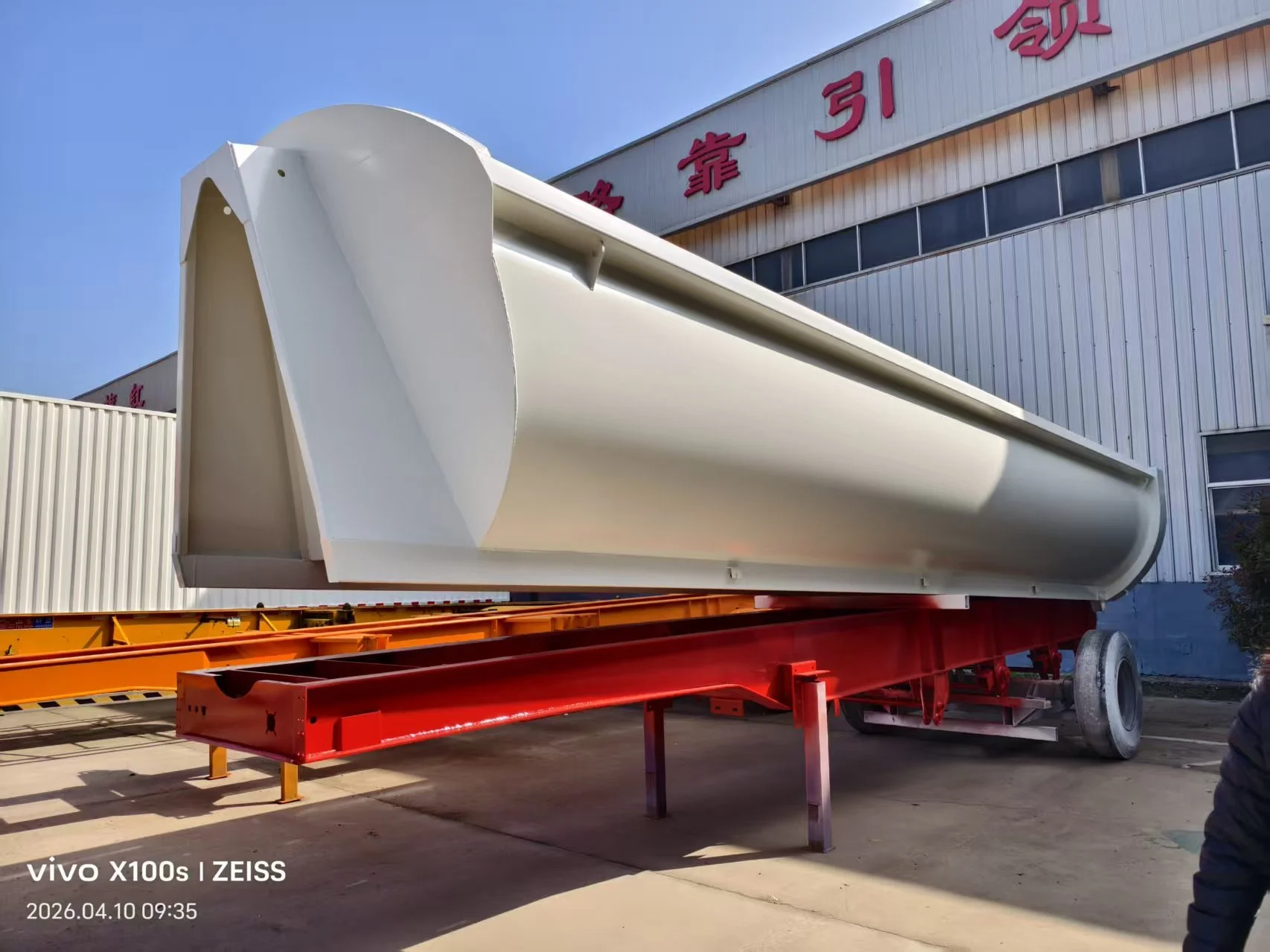

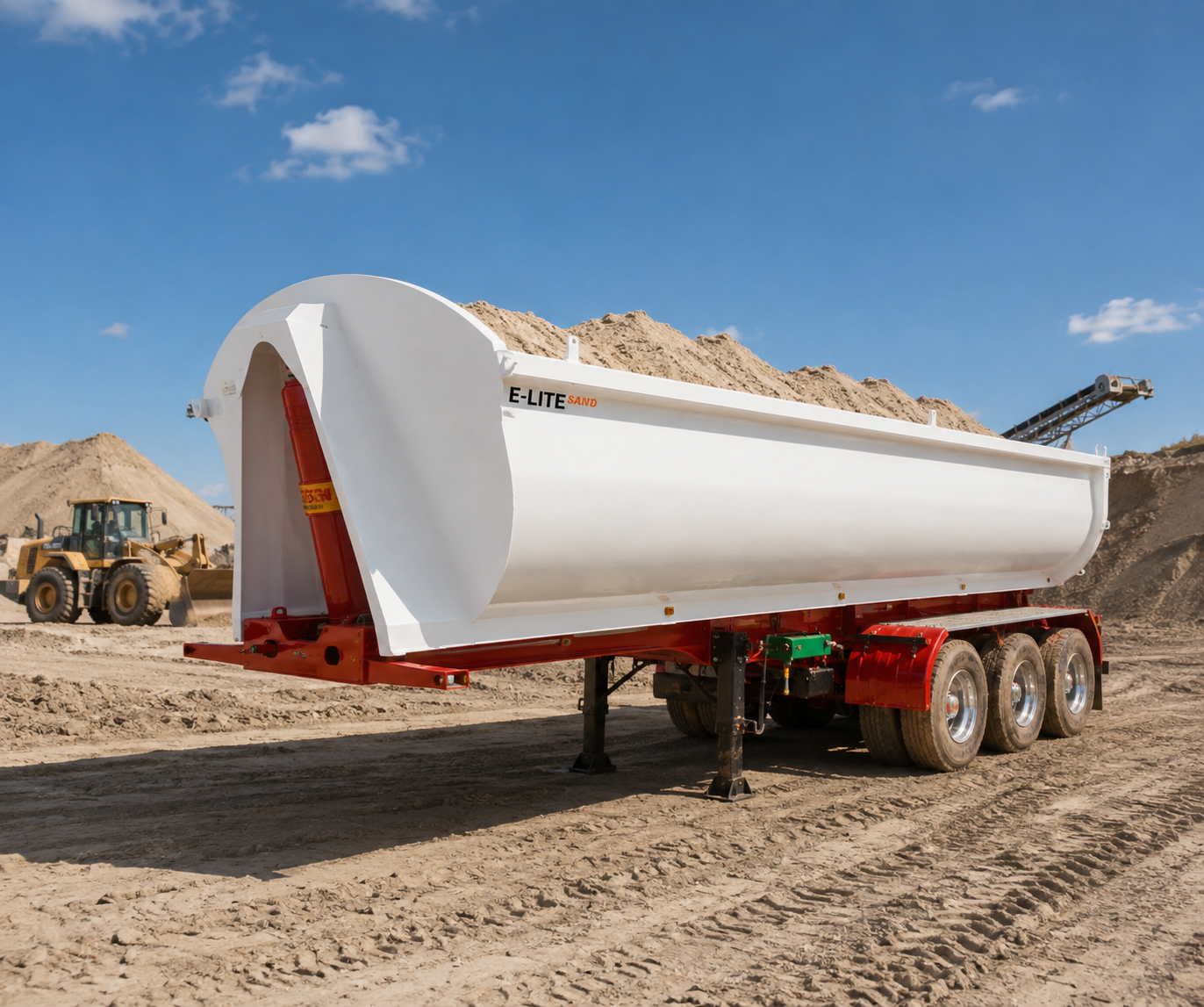

E-LITE SAND TIPPER

Need a lightweight tipper built for demanding bulk haulage? The Elite Trailers Sand Tipper is designed for quarry and sand transport work across metropolitan, regional and interstate routes. Built with a Hardox steel floor and high tensile steel sides and a tare weight of approximately 6.8 tonnes, it combines strong payload potential with the durability operators need for hard-working transport operations.

$78,995 +GST
Text in bold red capital letters that reads "FUWA K HITCH" against a white background.
Red background with a white geometric logo resembling a stylized letter H or a combination of shapes.
ZF and WABCO logos in blue
The image displays the word 'JOST' in bold blue capital letters with an orange underline.
KNORR-BREMSE logo featuring a blue circle with a white 'K' inside, followed by the company name in bold blue text.
Logo for HARDOX WEPARTS in bold maroon letters on a white background

Specifications & Questions

Still have questions? Please reach out to us on 1300 001 855

Contact us

  • Elite Trailers Tri Axle Sand Tipper “E-LITE SAND”

    Price: $78,995 + GST

    Capacity

    • Payload 30T

    • Approx. Tare Weight 6.8T

    Dimensions

    • Overall size: 9500mm x 2500mm x 3200mm

    • Tipper Box: 9000mm x 2370mm x 1200mm

    • Wheelbase: 1360mm + 1360mm

    Chassis

    • Main beam: VHT Steel T700 (700MPa Tensile/Yield), 8mm thickness

    • Body: Floor - Hardox 450 Abrasion Resistant Steel 4mm, Side - VHT T700 3mm.

    • King pin: Bolted JOST 3.5inch (90mm)

    • Tarp: Roll over manual tarp (electric optional extra)

    Running Gear

    • Axle: Fuwa K-Hitch 11.5tons (3 units)

    • Tyre: Triangle 11R22.5 double mounted

    • Rim: Polished Aluminum 8.25-22.5

    • Landing gear: JOST

    • Suspension: Fuwa K-HITCH Mechanical

    • Hydraulic cylinder: 50T

    • Brake system: Knorr-Bremse Emergency Relay Valve, dual line

    • EBS: Yes- Knorr-Bremse

    Accessories

    • Toolbox: yes

    • Spare wheel: 1 spare aluminum rim in carrier

    • Protectors: mudguard, mud-flags behind rear axle, mid & rear side protection

    • Sandblasted: Yes

    • Paint: Std Red chassis and White tipper box

  • All optional extras available at additional cost from displayed base unit price.

    All prices displayed below are GST exclusive.

    • King Pin Size change: 50mm (no extra cost)

    • Paint: Body & Chassis available in numerous colours, please enquire.

    • Ring Feeder: $2000

    • Suspension upgrade: Airbags $8000

    • Brakes upgrade: Disc brakes $5000

    • Electric Razor Tarp: $8000 fitted here locally

    • Weight Right Scales: Mechanical $1200

    • Weight Right Scales: Digital $2500

    • Hub Odometer: $250

    • Hardox Body Sides Upgrade: $10,000

  • Where is Elite Trailers based?

    The team at Elite Trailers are based in Perth, Western Australia. Our yard for delivery and inspection is based at 25 Lionel Street, Naval Base.

    Elite Trailers is proudly Australian owned.

    How can Elite Trailers offer such affordable pricing?

    Elite Trailers uses an unique business model designed to keep our overheads low, enabling us to pass on the lower prices.

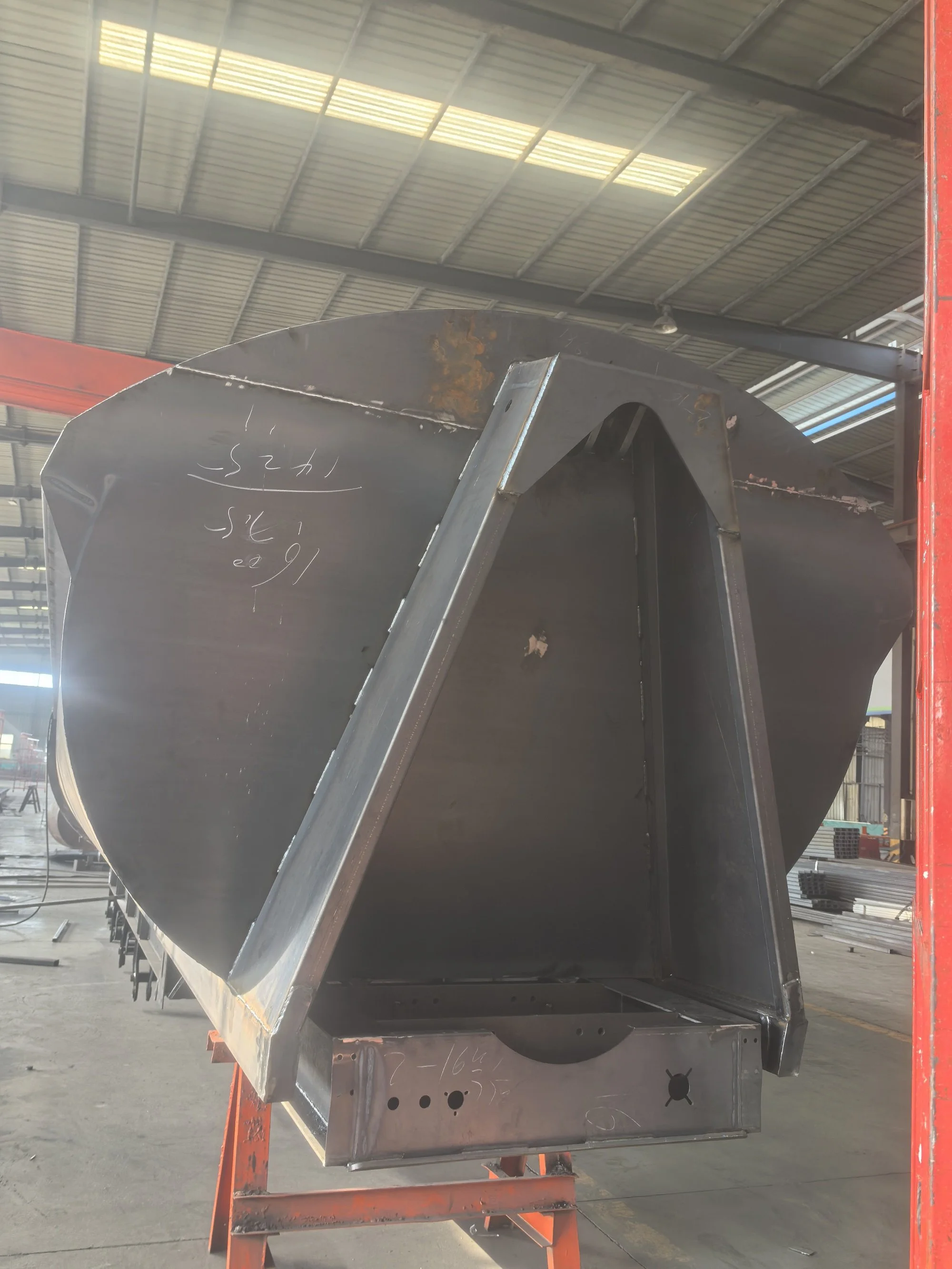

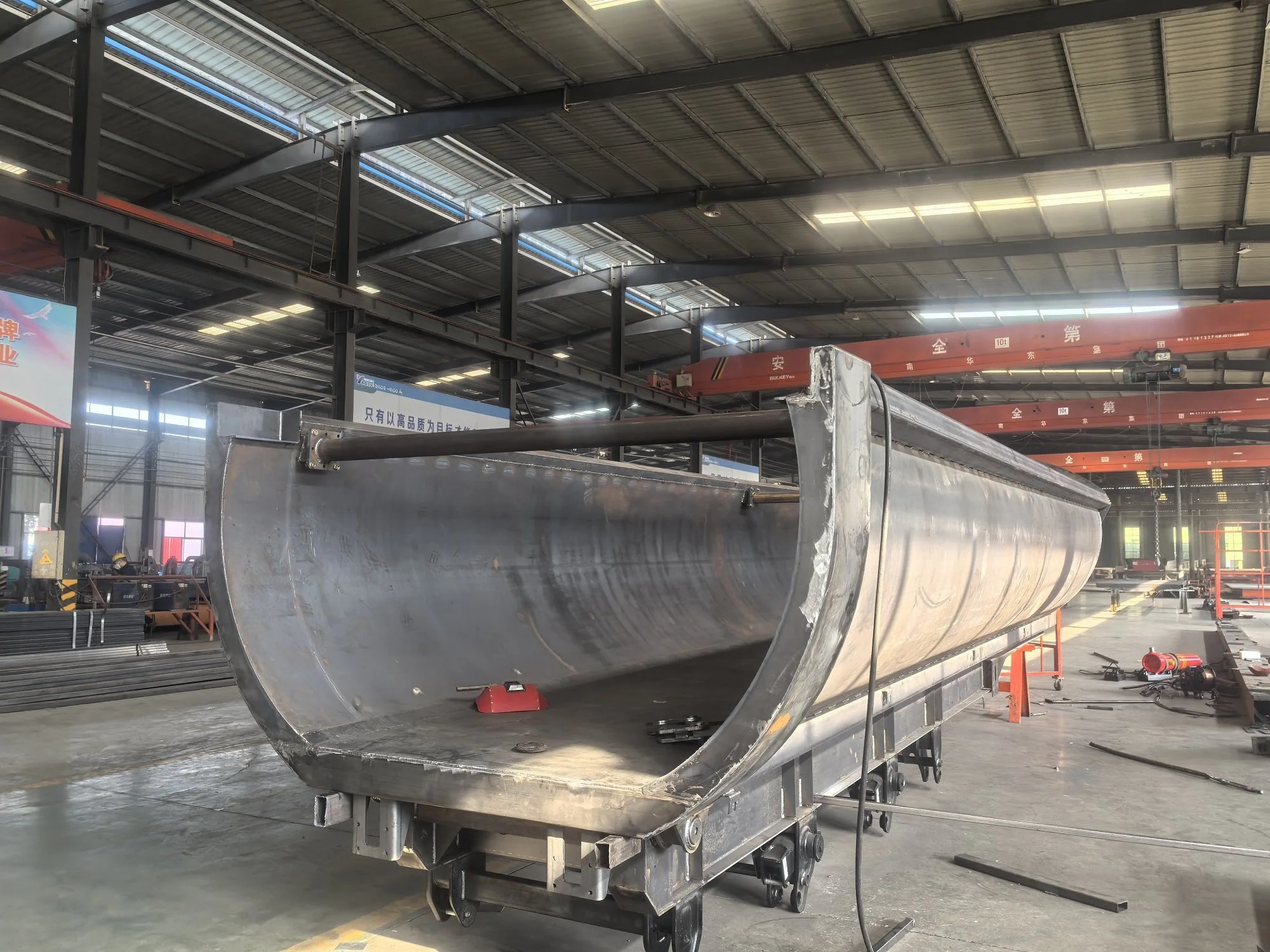

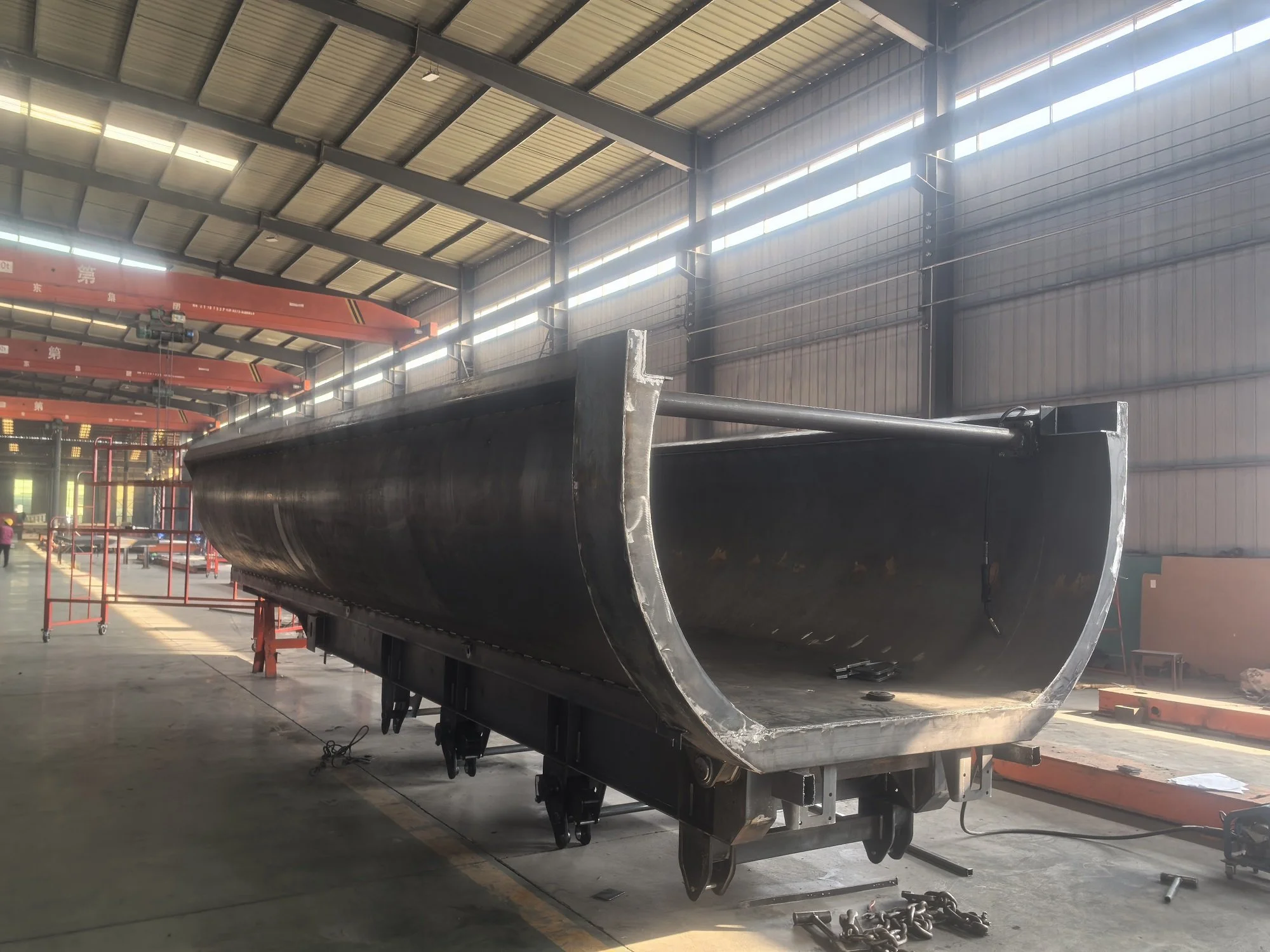

    All our design and engineering work is conducted in Australia, our overseas manufacturing partner builds each trailer to exact specifications using state of the art equipment at their disposal. On arrival in Australia, each trailer is inspected for QA and assembled before delivery.

    To further keep our overheads low, we do not keep much stock on hand with the majority of items in the depot pre-sold.

    What is the average build time?

    Build from date of deposit is approximately 10-12 weeks.

    Tell me more about Elite Trailers 24 month warranty?

    Elite Trailers offers an industry leading 24 month structural warranty and 12 month warranty on the running gear.

    More information can be found here.

    Can I get a customised trailer design?

    Yes, but it will depend on our engineering team and factories capacity and ability to fulfil the request.

    Can a trailer be picked up before paying the balance on the invoice?

    No. Trailers will not be released from our holding yard till remaining balance is paid.
